Xuwei

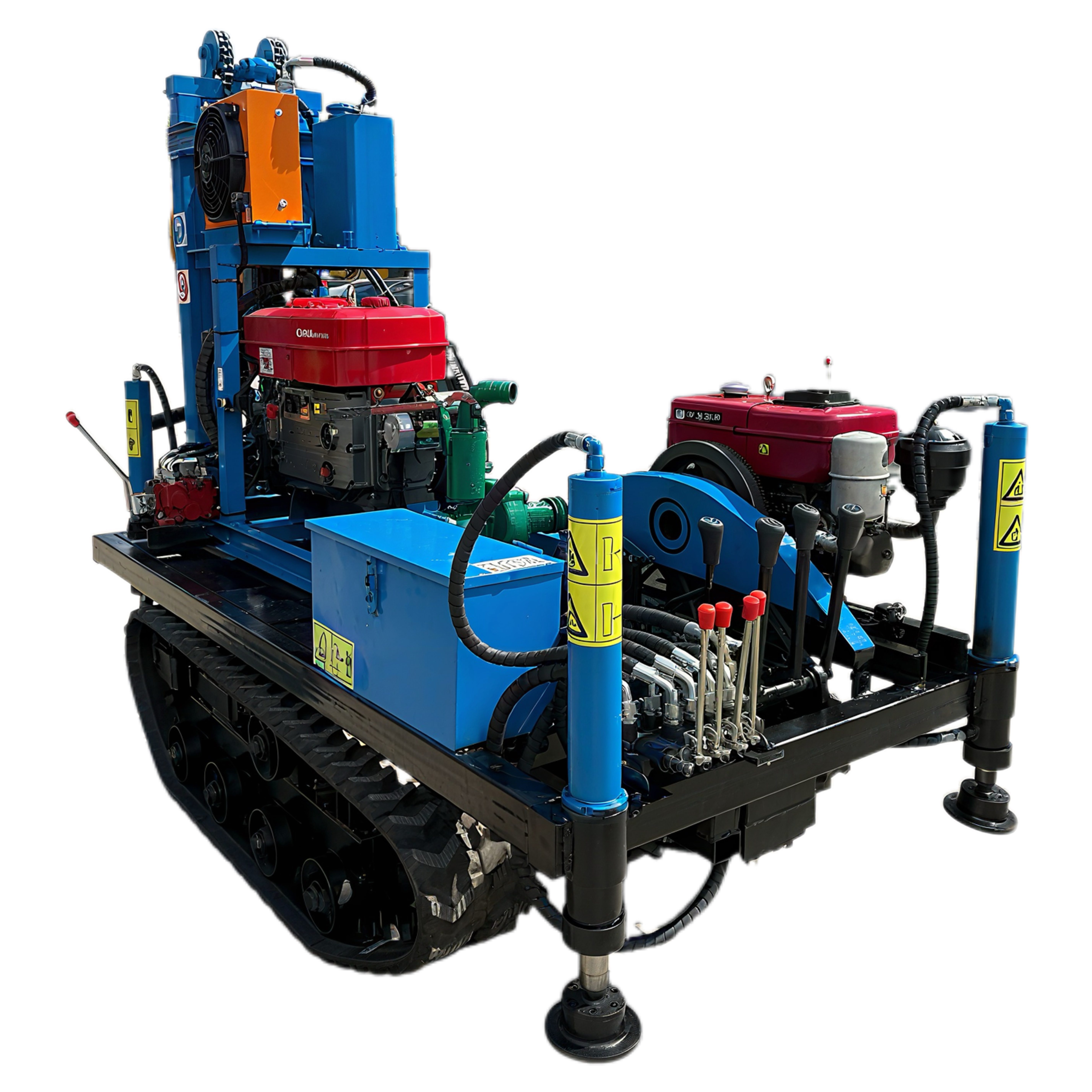

Water Well Drilling Rig———XW 150-T
Designed specifically for drilling groundwater wells, it is equipped with a crawler/tire chassis, allowing movement in complex terrains such as wild fields and mountainous areas. It can quickly obtain a stable water source, reduce costs throughout the entire cycle, and ensure water quality and project compliance.
Main Features
1. Functional Integration: One-stop drilling completion
Integrates power output, rock-breaking drilling, cuttings handling, and borehole wall protection. No need to borrow external equipment, avoiding workflow interruptions.
2. Professional Performance: Suitable for deep holes and hard rocks
Optimized for drilling depth and formation hardness, enabling precise operations, distinguishing it from ordinary drilling machinery.
3. Enhanced Safety: Double protection to avoid hidden dangers
Equipped with active prevention (prevention of drilling tool collapse) and emergency disposal (prevention of well blowout and gas leakage) mechanisms, complying with industry safety standards.
4. Environmental Adaptability: Coping with harsh working conditions
Resistant to high temperatures, severe cold, mud, and dust, suitable for non-hardened sites such as fields and mining areas, with strong mobility.
Technical Parameter
| Overall Dimension | 2700 mm x 1130 mm x 2100 mm |
| Working Power | Changzhou 22 HP Singlecylinder Diesel Engine |
| Travel Power | Changzhou 8.5 HP Single-cylinder Diesel Engine |
| Hydraulic Power | 40 Pump |
| Dril Tower Stroke | 2200 mm |
| Drill Pipe Length | 1 m/ 1.5 m/2 m |
| Dril Pipe Diameter | 50 mm / 60 mm/ 76 mm |
| Travel Power Gearbox | Mechanical 3-speed GearboX |
| Water Pump Model | 65-180A Type Centrifugal Pump |
| Working Diameter | 70-300 mm |
| Working Depth | 150 m |
| Overall Weight | Approximately 900 kg |
Water Well Drilling Rig———XW 150-T
Designed specifically for drilling groundwater wells, it is equipped with a crawler/tire chassis, allowing movement in complex terrains such as wild fields and mountainous areas. It can quickly obtain a stable water source, reduce costs throughout the entire cycle, and ensure water quality and project compliance.
Main Features
1. Functional Integration: One-stop drilling completion
Integrates power output, rock-breaking drilling, cuttings handling, and borehole wall protection. No need to borrow external equipment, avoiding workflow interruptions.
2. Professional Performance: Suitable for deep holes and hard rocks
Optimized for drilling depth and formation hardness, enabling precise operations, distinguishing it from ordinary drilling machinery.
3. Enhanced Safety: Double protection to avoid hidden dangers
Equipped with active prevention (prevention of drilling tool collapse) and emergency disposal (prevention of well blowout and gas leakage) mechanisms, complying with industry safety standards.
4. Environmental Adaptability: Coping with harsh working conditions
Resistant to high temperatures, severe cold, mud, and dust, suitable for non-hardened sites such as fields and mining areas, with strong mobility.
Technical Parameter
| Overall Dimension | 2700 mm x 1130 mm x 2100 mm |
| Working Power | Changzhou 22 HP Singlecylinder Diesel Engine |
| Travel Power | Changzhou 8.5 HP Single-cylinder Diesel Engine |
| Hydraulic Power | 40 Pump |
| Dril Tower Stroke | 2200 mm |
| Drill Pipe Length | 1 m/ 1.5 m/2 m |
| Dril Pipe Diameter | 50 mm / 60 mm/ 76 mm |
| Travel Power Gearbox | Mechanical 3-speed GearboX |
| Water Pump Model | 65-180A Type Centrifugal Pump |
| Working Diameter | 70-300 mm |
| Working Depth | 150 m |
| Overall Weight | Approximately 900 kg |
