500m Reverse Circulation Drilling Rig Suitable for Various Scenarios with Low Energy Consumption And High Efficiency

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

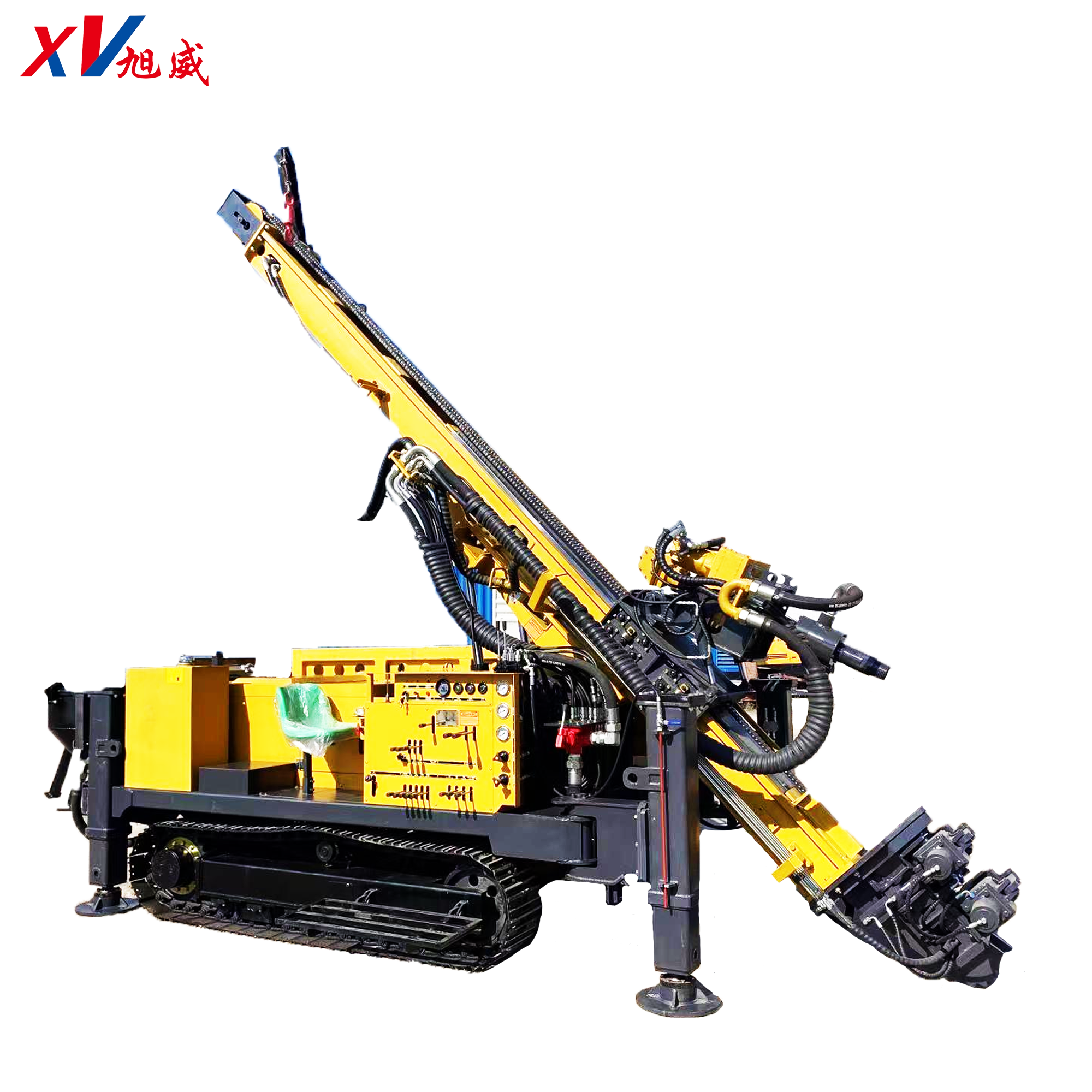

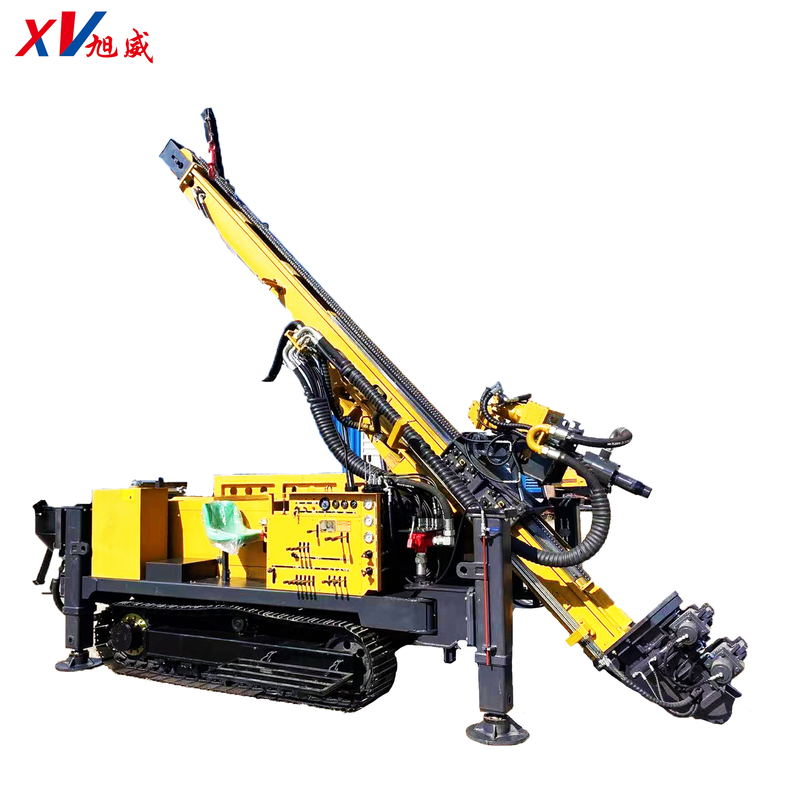

XW500 RC Drilling Rig

项目Model 单位Units 参数Parameters

钻进能力

Drilling capacity

最大钻孔深度

Max drilling depth

m 500

最大钻孔直径

Max drilling diameter

mm Φ400

发动机

ngine

发动机品牌Engine brand / 康明斯cummins
额定功率Rated power Kw 132

进给系统

Feed system

提升力Lifting force T 26

快速提升速度

Speed of fast lifting

m/min 30
加压力Feeding force T 10

快速下放速度

Speed of fast putting down

m/min 60

最大进给行程

Max feeding stroke

mm 3600

回转系统

Rotation system

最大回转扭矩Rotary torque Nm 11000/5500
最大回转速度Rotary speed r/min 70/140

行走系统

Travelling system

行走速度Travel speed Km/h 2.5
爬坡能力Grade ability 21

工具卷扬Tool winch

提升力Lifting force T 1.5

推荐钻杆直径

Drilling rods diameter

/ mm 89/102/114

运输尺寸

Transport dimension

长x宽x高

Length x Width x Height

mm 6860x2200x2600
整机重量 Machine weight / T 11

可选配的配件

Optional accessories

发电电焊机、泡沫泵

Welding generator、Foam Pump

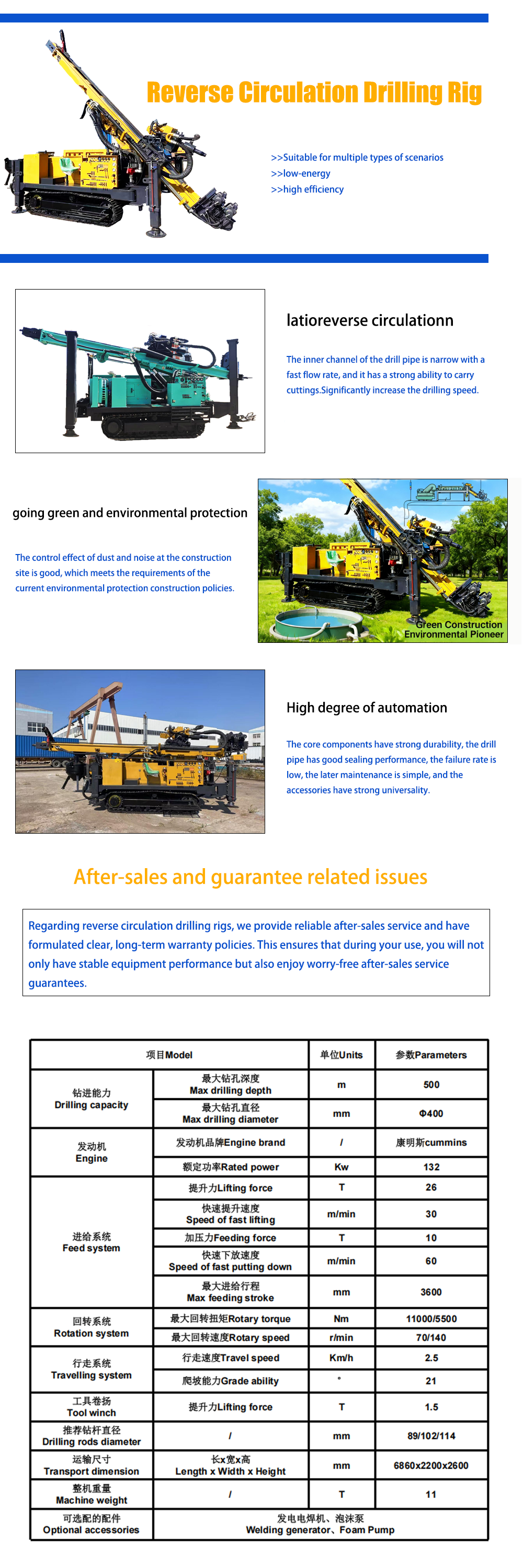

rc500详情页
