Xuwei

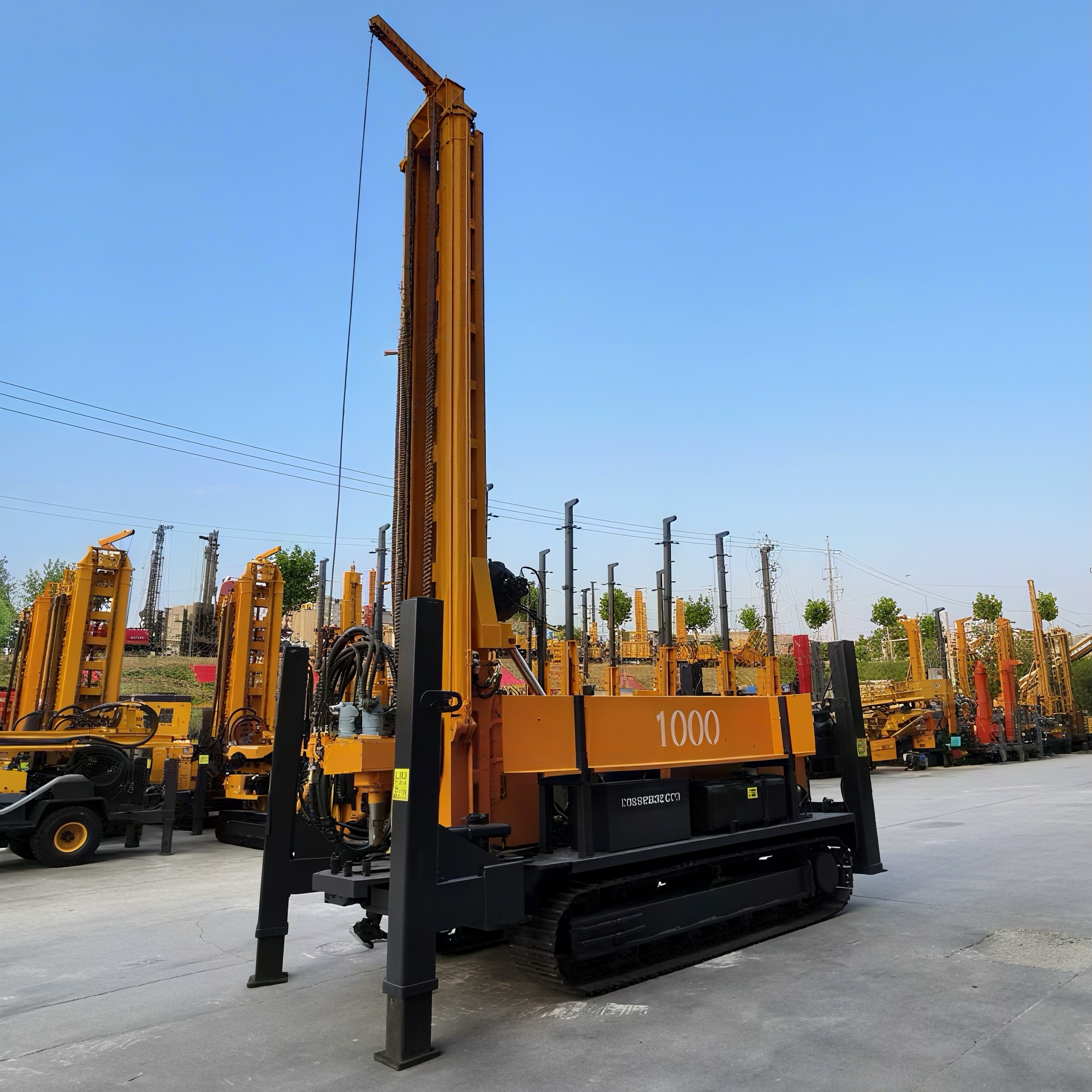

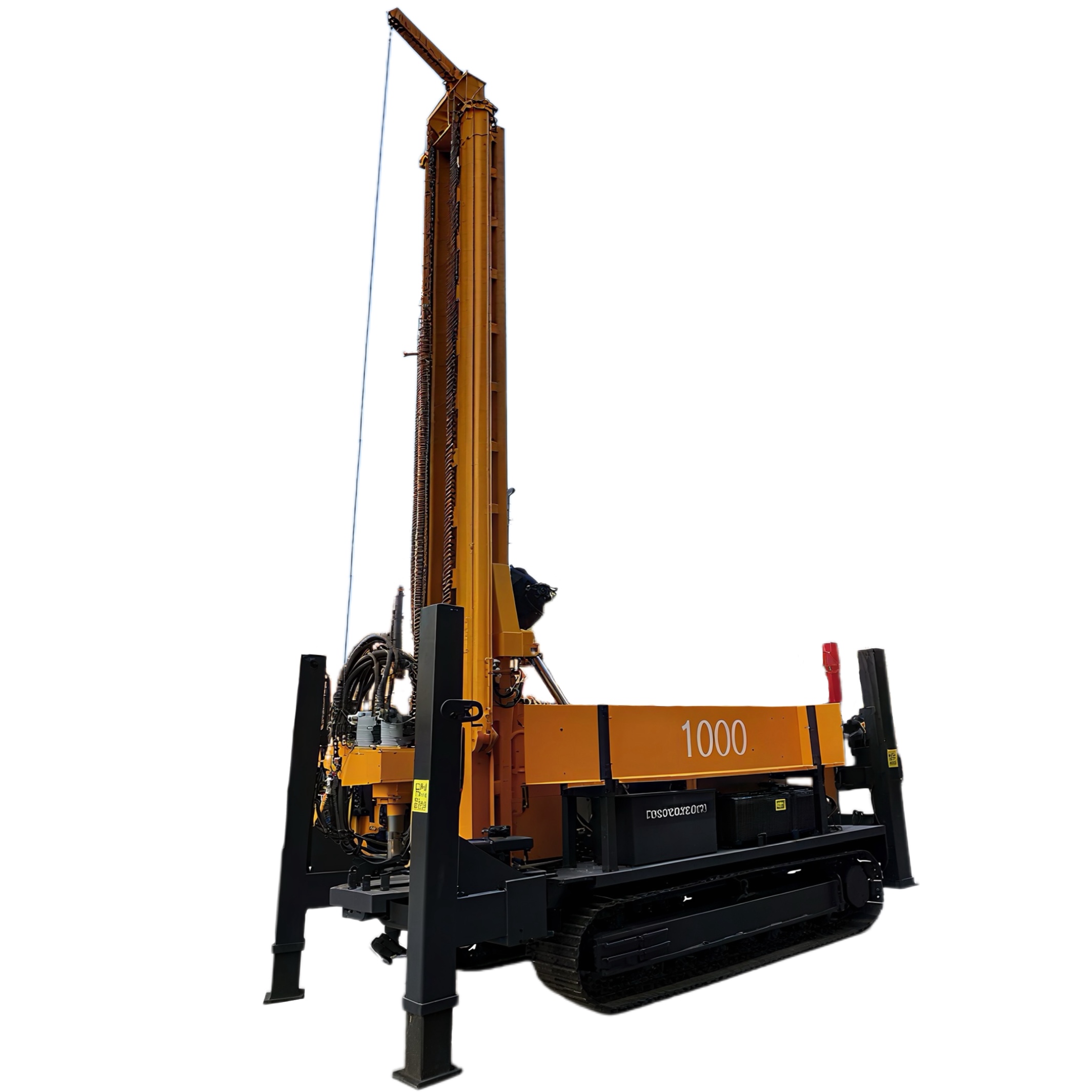

The water well drilling rig is a professional geotechnical engineering machine specially designed for drilling groundwater wells and equipped with multiple functions.Drilling rigs are equipped with crawler or tire chassis, enabling them to move on non-hardened surfaces such as in the wild, rural areas, and mountainous regions, and adapt to complex working environments.It can not only efficiently and flexibly obtain a stable water source, but also reduce costs from a full-cycle perspective, and ensure water quality and project compliance.
Main Features of Drilling Equipment
1. Functional Integration: Complete the entire drilling process "in one stop"
Drilling equipment is not a single machine, but a complete set of systems integrating functions such as "power output, rock breaking and drilling, cuttings treatment, and hole wall protection". It can complete the entire process of operations without relying on external equipment, thus avoiding disconnection between processes.
2. Performance Specialization: Optimization for "Deep Holes, Hard Rock, and Stability"
The performance design of drilling equipment is highly matched with core requirements such as "drilling depth, formation hardness, and operation accuracy", distinguishing it from ordinary drilling machinery.
3.Enhanced safety assurance: Avoiding high-risk operation risks
Drilling operations involve safety risks such as "drill tool collapse, blowout, and leakage of harmful gases". The equipment is designed with safety mechanisms from two aspects: "active prevention" and "emergency handling", which comply with industry safety standards.
4.Environmental adaptability: coping with complex terrains and harsh working conditions
Drilling operations are mostly carried out on non-hardened surfaces such as fields, mountainous areas, oil fields, and mining areas, and often face harsh environments such as high temperatures, extreme cold, mud, and dust. The design of the equipment fully considers "mobility" and "weather resistance".
Technical Parameter
| Overall Dimensions(mm) | 6500x2200x2700 | (mm)Drill Pipe Diameter | 89/102/114 |
| (kw)Engine | P12-280 潍柴涡轮增压发动机Weichai Turbocharged Engine | (m)Drill Pipe Length | 3/6/9 |
| Four-connection Pump | 160+ 160+ 63+ 32 | (mm)Drilling Diameter | 146-350 |
| Rotary Motor | 500+ 500 | (m)Maximum Depth ofPneumatic Drilling | 1000 |
| (N·m)Torque | 5000-12000 | (m)Maximum Depth folHydraulic Driling | 1200 |
| (t)Lifting Force | 40 | (rpm)Pneumatic Drilling Speed | 150-300 |
| （m)Power Head Stroke | 9.6 | (rpm)Hydraulic Drilling Speed | 400-650 |
| Mud Pump | 配备 600 型泥浆泵Equipped with a 600-typeMud Pump | (t)Total Weight | 13.2 |
